Ventilācijas rāmja stiprināšanas elementi -> Cinkoti skārda stiprināšanas elementi -> Cinkoti skārda stiprināšanas elementi sortiments

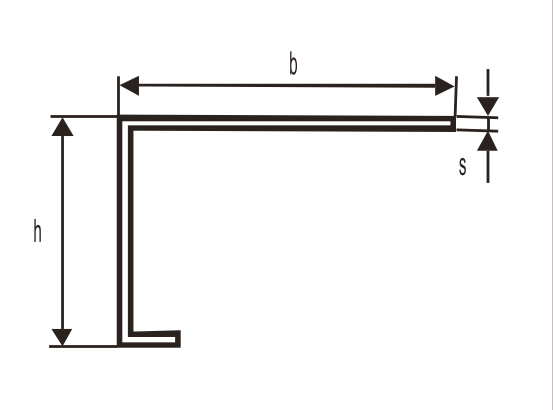

L profils

Nosaukums s, mm h, mm b,mm
L profilis 1.00 35 50
L profilis 1.20 35 50

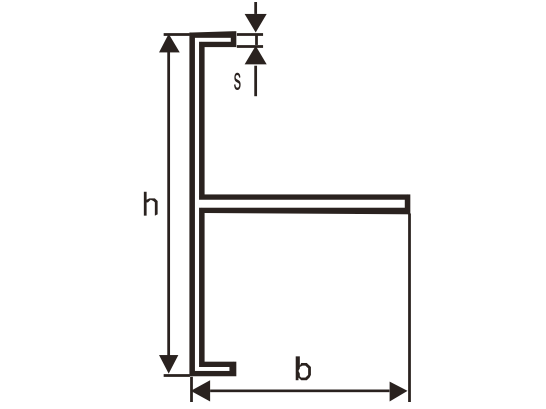

T profils

Nosaukums s, mm h, mm b,mm
T-flex 1.00 70 50
T-flex 1.20 120 50

Omega profils

Nosaukums s, mm h, mm b, mm
Omega 30 0.7 20 30
Omega 30 1 20 30
Omega 30 1.2 20 30
Omega 30 liekts 1 20 30
Omega 50 1 20 50
Omega 50 1.2 20 50
Omega 50 logu ailēm 1 20 50
Omega 90 1 20 90
Omega 90 1.2 20 90

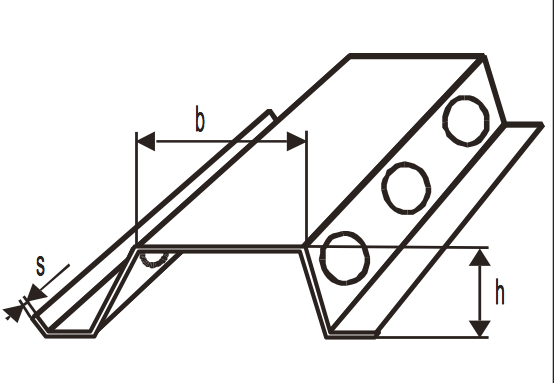

Ventilējamais profils

Nosaukums s, mm h, mm b, mm
Ventilējamais profils 0.7 32 50
Ventilējamais profils 1 32 50

Z-flex profils

Nosaukums s, mm h, mm b, mm
Z-flex 50 1 35 50
Z-flex 50 1.2 35 50
Z-flex 75 1 35 75
Z-flex 75 1.2 35 75
Z-flex 100 1 35 100
Z-flex 100 1.2 35 100
Z-flex 120 1 35 120
Z-flex 120 1.2 35 120

H profils

Nosaukums s, mm h, mm b, mm b1, mm
H profils 19x20x19 1 20 19 19
H profils 25x20x25 1 20 25 25

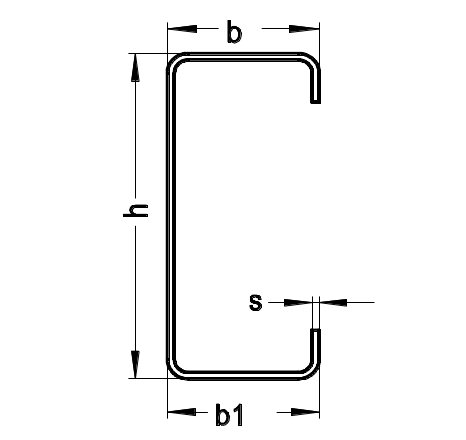

C profils

Nosaukums s, mm h, mm b, mm
Profils C-var but termo 1 100 30
Profils C-var but termo 1.2 100 30
Profils C-var but termo 1.5 100 30
Profils C-var but termo 2 100 30
Profils C-var but termo 1 125 30
Profils C-var but termo 1.2 125 30
Profils C-var but termo 1.5 125 30
Profils C-var but termo 2 125 30
Profils C-var but termo 1 150 40
Profils C-var but termo 1.2 150 40
Profils C-var but termo 1.5 150 40
Profils C-var but termo 2 150 40
Profils C-var but termo 1.5 200 40
Profils C-var but termo 2 200 40

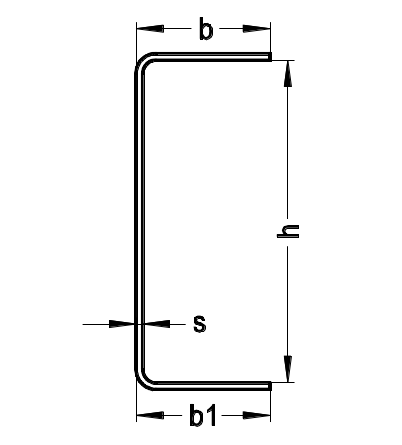

U profils

Nosaukums s, mm h, mm b, mm
Profils U-var but termo 1 100 40
Profils U-var but termo 1.2 100 40
Profils U-var but termo 1.5 100 40
Profils U-var but termo 2 100 40
Profils U-var but termo 1 125 40
Profils U-var but termo 1.2 125 40
Profils U-var but termo 1.5 125 40
Profils U-var but termo 2 125 40
Profils U-var but termo 1 150 40
Profils U-var but termo 1.2 150 40
Profils U-var but termo 1.5 150 40
Profils U-var but termo 2 150 40
Profils U-var but termo 1.5 200 40
Profils U-var but termo 2 200 40

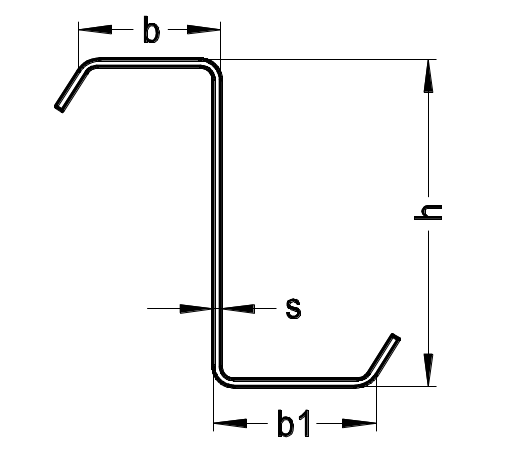

Z profils

Nosaukums s, mm h, mm b, mm
Profils Z-var but termo 1 50 40
Profils Z-var but termo 1.2 50 40
Profils Z-var but termo 1.5 50 40
Profils Z-var but termo 1 75 40
Profils Z-var but termo 1.2 75 40
Profils Z-var but termo 1.5 75 40
Profils Z-var but termo 1 100 40
Profils Z-var but termo 1.2 100 40
Profils Z-var but termo 1.5 100 40
Profils Z-var but termo 2 100 40
Profils Z-var but termo 1 125 40
Profils Z-var but termo 1.2 125 40
Profils Z-var but termo 1.5 125 40
Profils Z-var but termo 2 125 40
Profils Z-var but termo 1 150 40
Profils Z-var but termo 1.2 150 40
Profils Z-var but termo 1.5 150 40
Profils Z-var but termo 2 150 40
Profils Z-var but termo 1.2 200 40
Profils Z-var but termo 1.2 200 60
Profils Z-var but termo 1.5 200 40
Profils Z-var but termo 1.5 200 60
Profils Z-var but termo 2 200 40
Profils Z-var but termo 2 200 60

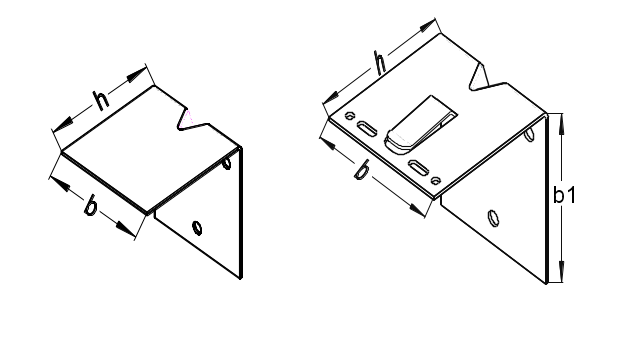

Kronšteini MK-P

Kronšteins L , cauruma diametrs Ø 8 (var būt citi izmēri)

Nosaukums s, mm h, mm b, mm b1, mm
MK-P 50/8 1.5 50 70 85
MK-P 70/8 1.5 70 70 85
MK-P 70/8 2 70 70 85
MK-P 100/8 2 100 70 85
MK-P 120/8 2 120 92 100
MK-P 120/8 L (ar mēli) 2 120 92 100
MK-P 140/8 2 140 92 100
MK-P 140/8 L (ar mēli) 2 140 92 100
MK-P 150/8 2 150 92 100
MK-P 150/8 L (ar mēli) 2 150 92 100

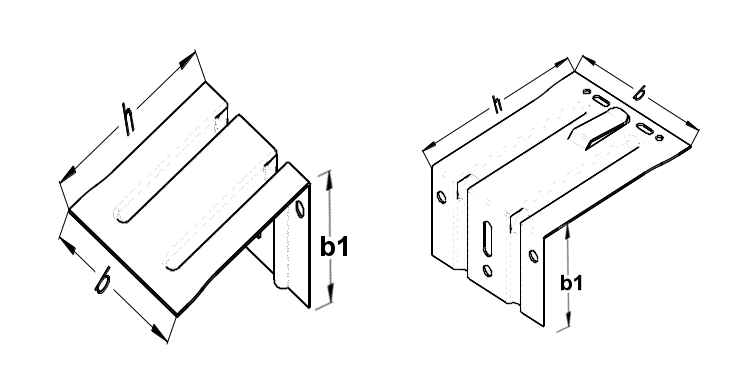

Kronšteini MK-T

Kronšteins L , cauruma diametrs Ø 8 (var būt citi izmēri)

Nosaukums s, mm h, mm b, mm b1, mm
MK-T 120/8 1.5 120 115 70
MK-T 120/8 L (ar mēli) 1.5 120 115 70
MK-T 140/8 1.5 140 115 70
MK-T 140/8 L (ar mēli) 1.5 140 115 70
MK-T 150/8 1.5 150 115 70
MK-T 150/8 L (ar mēli) 1.5 150 115 70
MK-T 180/8 1.5 180 115 70
MK-T 180/8 L (ar mēli) 1.5 180 115 70
MK-T 200/8 1.5 200 115 70
MK-T 200/8 L (ar mēli) 1.5 200 115 70
MK-T 200/8 2 200 115 70
MK-T 200/8 L (ar mēli) 2 200 115 70
MK-T 220/8 1.5 220 115 70
MK-T 220/8 L (ar mēli) 1.5 220 115 70
MK-T 220/8 2 220 115 70
MK-T 220/8 L (ar mēli) 2 220 115 70
MK-T 250/8 1.5 250 115 70
MK-T 250/8 L (ar mēli) 1.5 250 115 70
MK-T 250/8 2 250 115 70
MK-T 250/8 L (ar mēli) 2 250 115 70
MK-T 280/8 2 280 115 70
MK-T 280/8 L (ar mēli) 2 280 115 70
MK-T 295/8 2 295 115 70
MK-T 295/8 L (ar mēli) 2 295 115 70
